A South Australian school unveils a new middle school development, where a vertical ‘learning village’ with architectural cladding made from COLORBOND® steel redefines the future of education.
Words: Editorial team led by Brydie Shephard.
Photography: Sam Noonan
Education · SA
In 2015, a triangular block of land hit the market in Adelaide, adjacent to the middle school campus of Pembroke - a leading co-educational, nondenominational day and boarding school. Located in the inner-city suburb of Kensington, the block had a complex footprint bordered by diagonal streets, within which Pembroke saw an opportunity to create an innovative learning hub for science, art, technology and cross-disciplinary learning.
At the core of the project’s brief was a desire to build an educational setting that would use layout, building materiality and smart building technology to provide a foundation for success.
“The atmosphere and qualities of the building needed to act as a catalyst for discussion, debate, enquiry and collaboration. We wanted the building to inspire future artists, engineers, scientists and artisans of all description – and for these disparate disciplines to collaborate together.”Hannah Bone Director of Advancement, Pembroke
Comprising six specialist classrooms and 13 teaching spaces dedicated to science, technology and art, the new development was imagined as a place that would inspire the next generation of creatives and industry leaders, providing students with the high-tech space and facilities they need to engage proactively with their studies, co-curricular activities, the school community and society.
It was only appropriate then that the building’s architecture strived for a similar goal. The key project team of architect Grieve Gillett Andersen (GGA), builder Sarah Constructions and cladding and roofing contractor SA Construct collaborated to produce a complex structure that worked within the site’s parameters and was completed in a timeframe of just 24 months due to lightweight construction materials such as prefabricated steel. Where traditional approaches to construction would ordinarily see a project of this size take up to 36 months to complete, innovation, steel prefabrication and on-site assembly allowed the team to cap both project duration and budget.
Connected to the original campus via an enclosed footbridge, the new development is a three-level angular structure that makes the most of the site’s footprint.

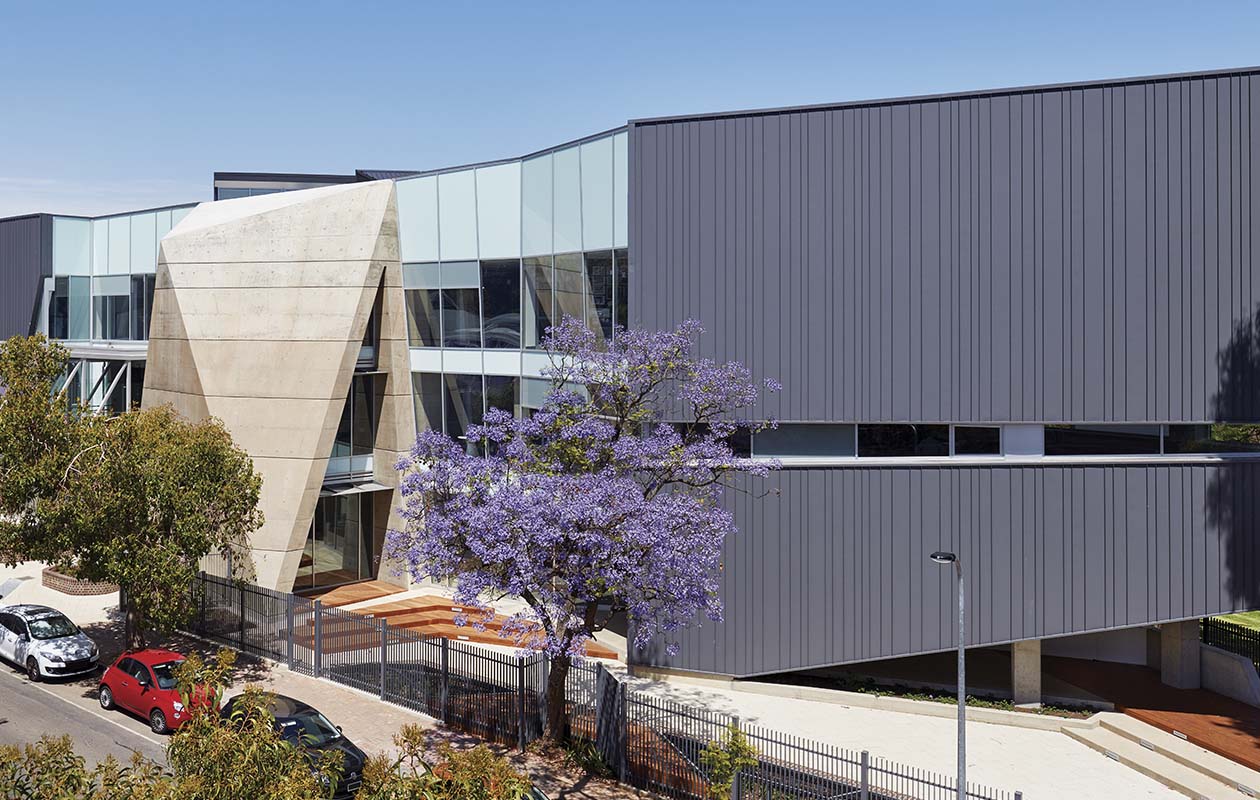

From the street, a striking external facade of Architectural wall cladding made from COLORBOND® steel Matt in Fielders Finesse® Prominence™ profile, in the COLORBOND® colour Basalt® breaks up the site’s concrete and glass form, with the Fielders Finesse® Prominence™ profile variable pan widths creating a welcoming exterior for the school’s community. Inside, the triangular block is broken down into a series of multi-storey smaller buildings that are grouped around a central atrium.
Varied building materials feature as a central design device, with large volumes of steel, concrete and glass coming together in a juxtaposition of tones and textures.
These building material choices, and the sensory interplay between them, are designed to distinguish the new development from the school’s existing heritage buildings.

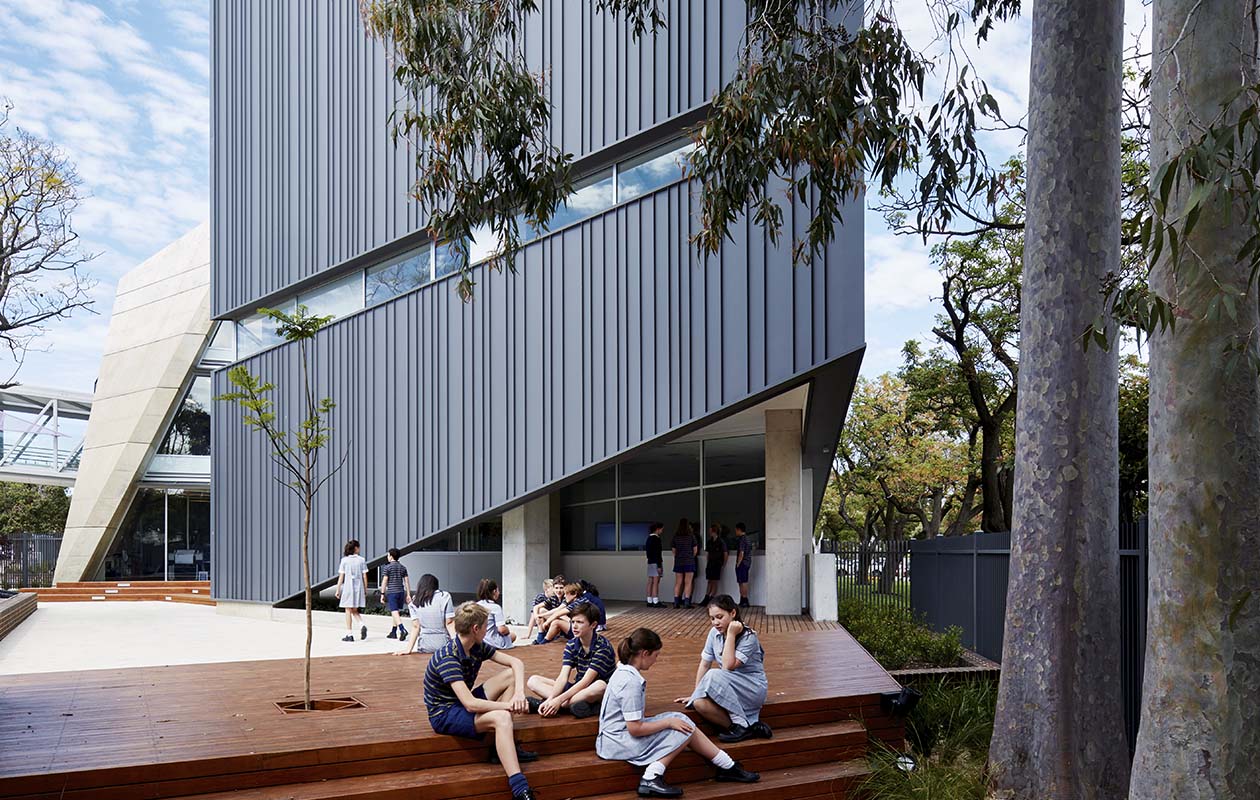

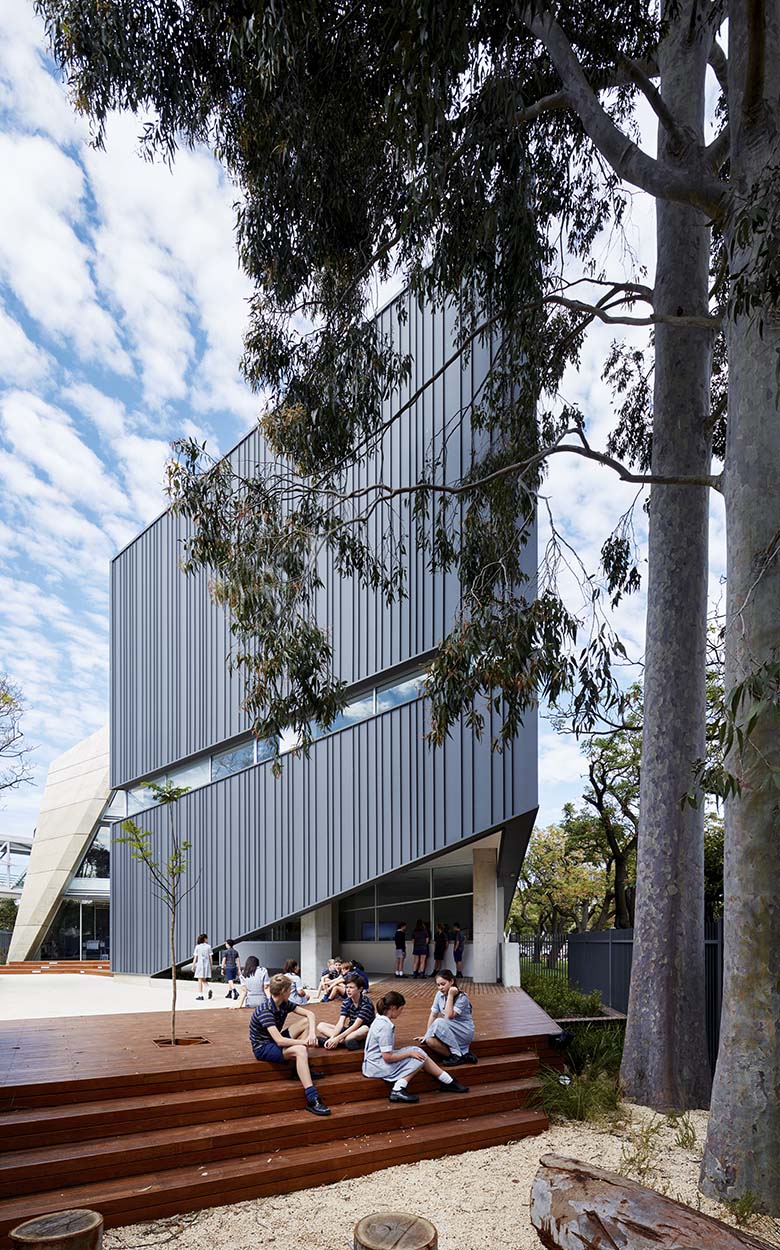

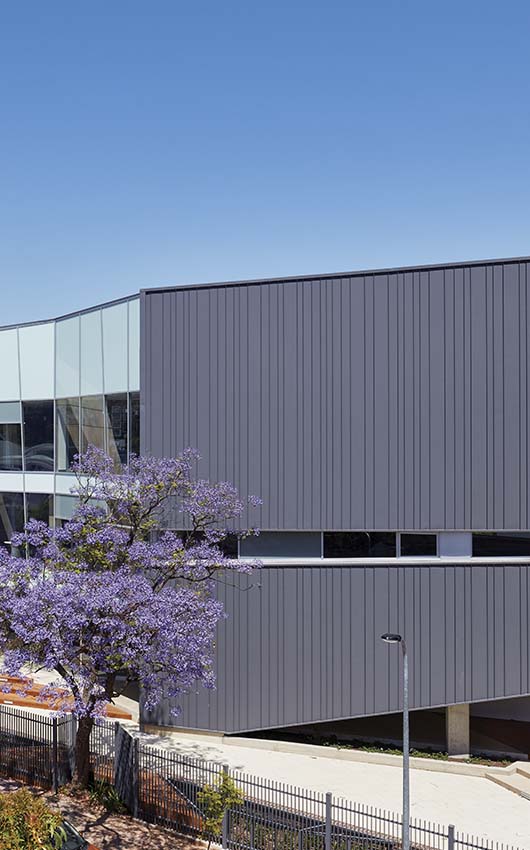

For the building’s facade, 2020m2 of Fielders Finesse® Prominence™ wall cladding made from COLORBOND® steel Matt in the COLORBOND® colour Basalt® works to add depth and softness to the building’s monolithic concrete elements and highlight the intricate angles of the architecture.
Comprising approximately 1600 pieces delivered in 22 sections, the prefabricated steel cladding panels were produced using Computer-Aided Design (CAD) elevations, where different width sheets were rolled out before being hand-cut into their final shapes. The variations in the Fielders Finesse® Prominence™ pan widths brings a custom design element to the architectural cladding for the building, with the irregularity of the intervals providing a depth-of-texture that elevates the overall structure and brings a personality to the otherwise imposing overall facade.
Throughout the wall cladding process, the customisation from Fielders allowed for installation to be quick and easy, providing a durable architectural cladding solution that could be prefabricated and fit within the project’s timeline.
"Steel cladding looks great across large areas, has design flexibility, can be easily customised and is low maintenance"Dimitty Andersen Director, Grieve Gillett Andersen Architects
“We detailed the building’s cladding in a variable width. This adds a custom design element, enhanced by the matt finish for a softer, more high-end look reminiscent of zinc. In addition, the cladding has a matt finish that gives a soft lustre and depth of colour,” says Dimitty Andersen, director of GGA.
The cladding also provided an important architectural reference to the school’s progressive ethos, where the tone, texture and materiality draws from typologies of industrial sheds as a nod to the process of making and creation that defines both the building construction process and curriculum.
The typical low roof-pitch of sheds and industrial buildings is also brought into play, where a parapet assists in concealing any visible pitch, giving the appearance of a flat roof. Here, Fielders KingKlip® 700 made from COLORBOND® steel in the COLORBOND® colour Monument® provided a flexible roofing solution that fit the building’s triangulated shape while also providing a waterproof roof for the entire structure.

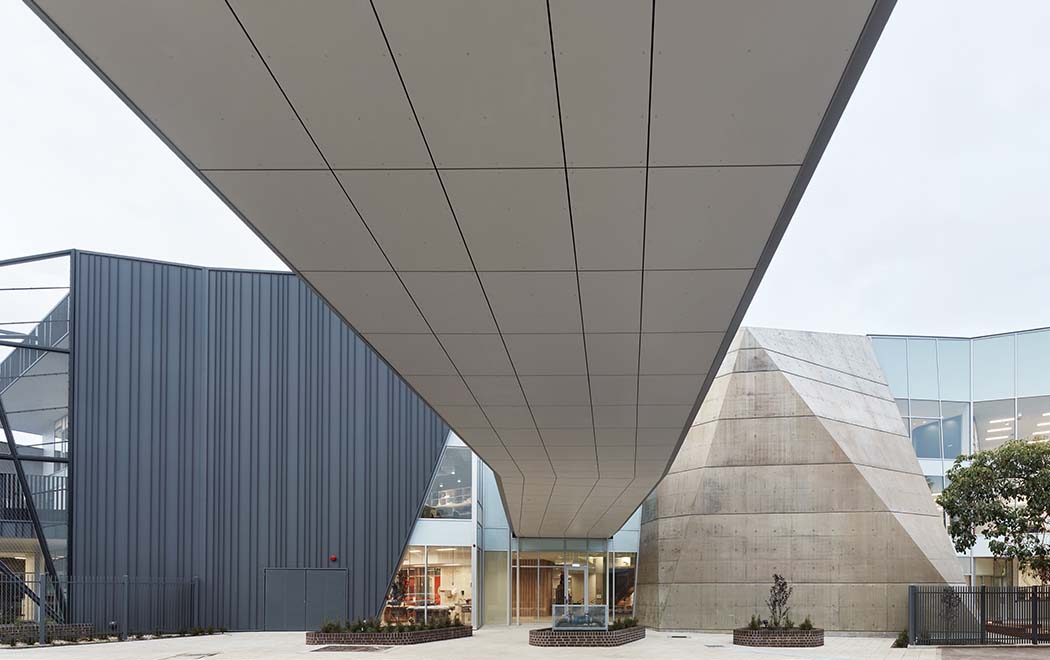

Setting off the facade is a statement ‘shard’, where 15-metre, vertical-raked angle walls come together to form a series of triangulated shapes.
Unique to the South Australian construction community, the shard is an earthquake-resistant structure, which provides additional lateral stability in the event of seismic movement, while also providing a key architectural statement.

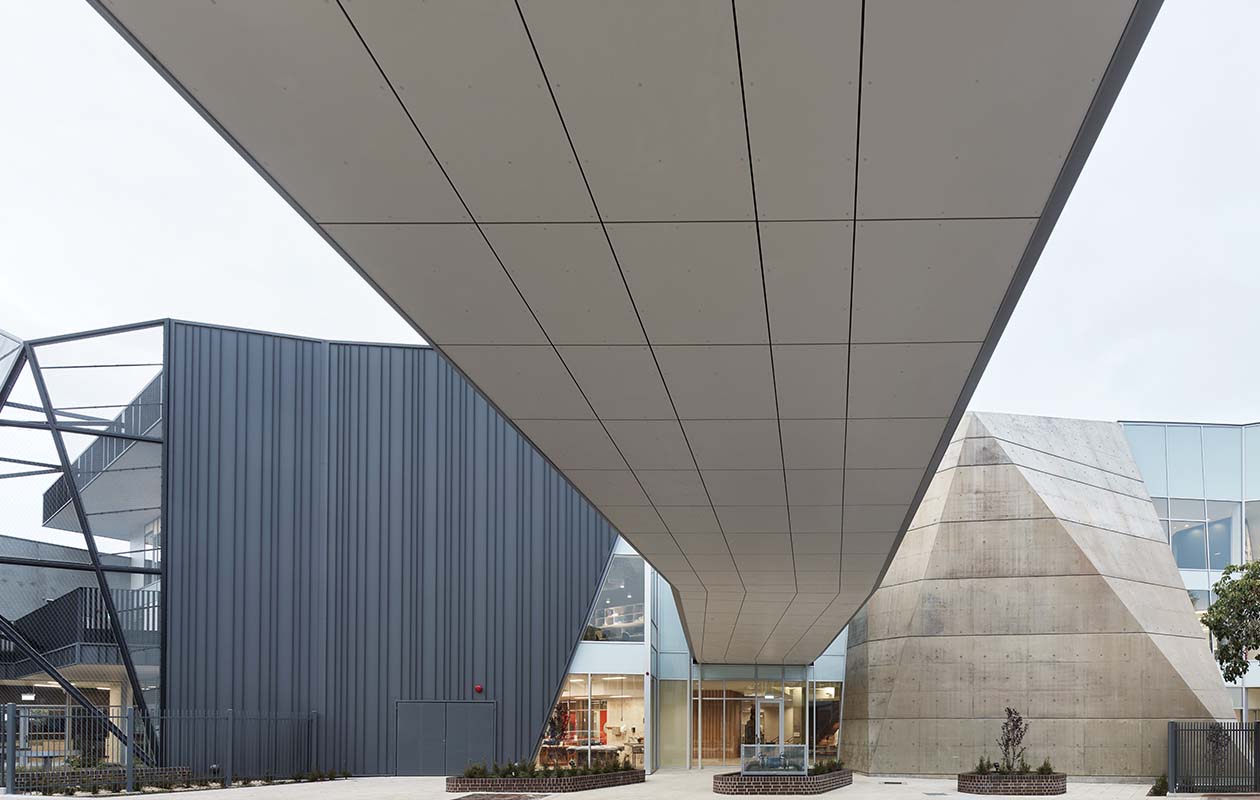

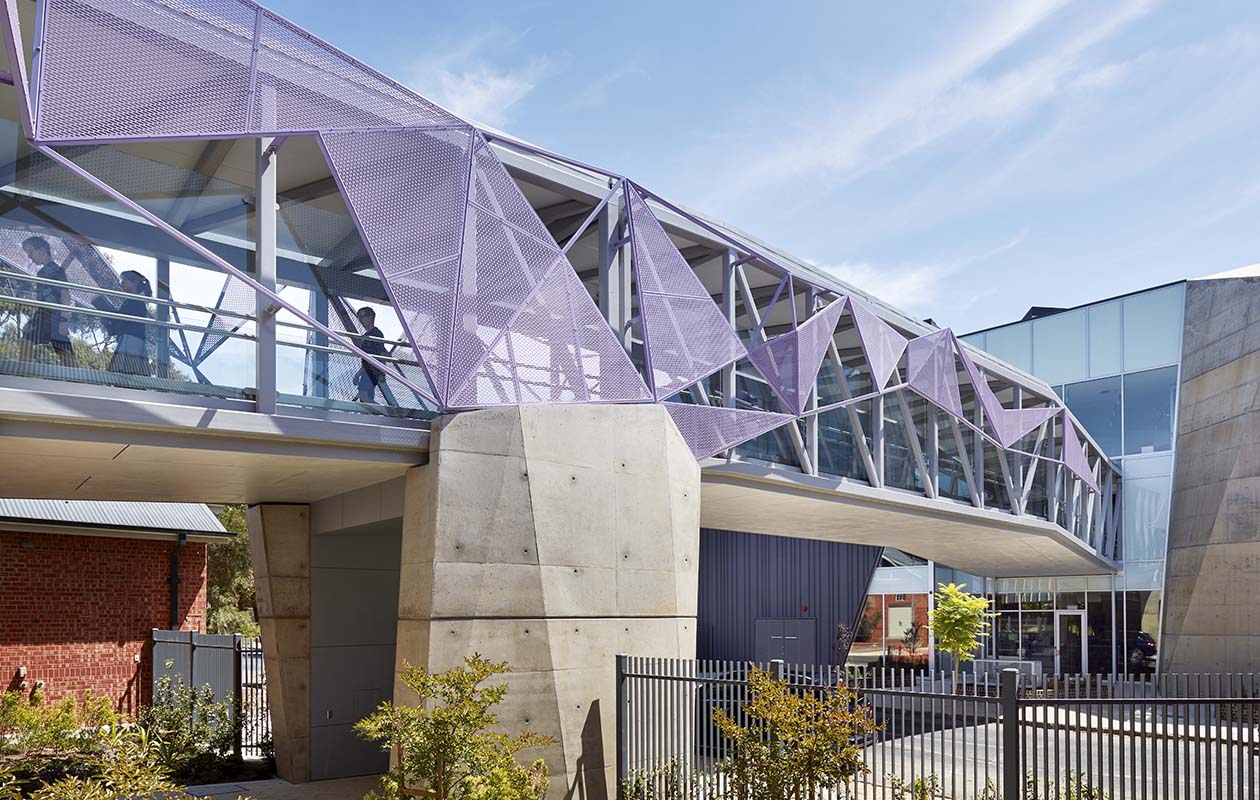

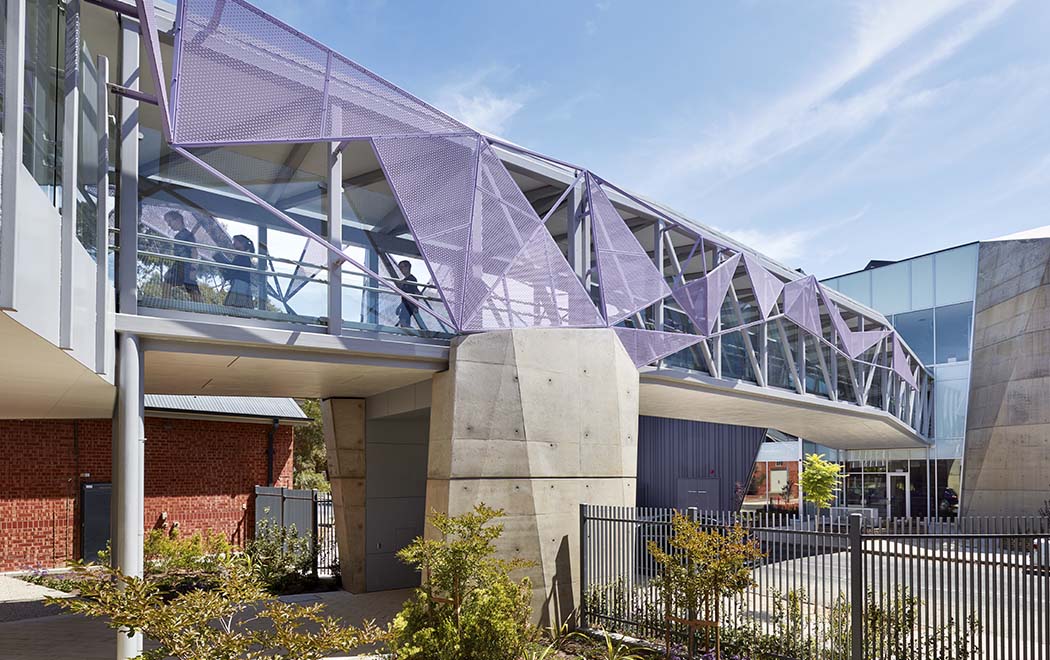

Another major deliverable was the 26.2-metre-long covered footbridge, which stretches across Shipsters Road to provide safe and seamless access between this new development and the existing campus.
With the intention to keep student and community disruption to a minimum, the bridge was formed off-site using prefabricated steel mostly in Square Hollow Sections (SHS) structural steel by structure designers and manufacturers, Specialised Solutions, who worked with GGA, Sarah Constructions and structural and civil engineers Combe Pearson Reynolds to design and manufacture a bridging solution that would require minimal work onsite.
The structure of the bridge is designed in steel and concrete, and is enclosed by perforated metal screens and glazing, to ensure students can transition between the new development and the existing campus, whatever the weather.
“We used structural steel so we could prefabricate the bridge off-site and install it in a single lift,” says Ainsley Knights, project manager at Specialised Solutions. “Alternative products may have required us to build on-site which would have eaten into the project’s timeline and impacted traffic and pedestrian access over a significantly longer period.”
Structural steel prefabrication also allowed greater quality control, with milestone factory visits allowing all consulting parties to ensure relevant expectations were being met.

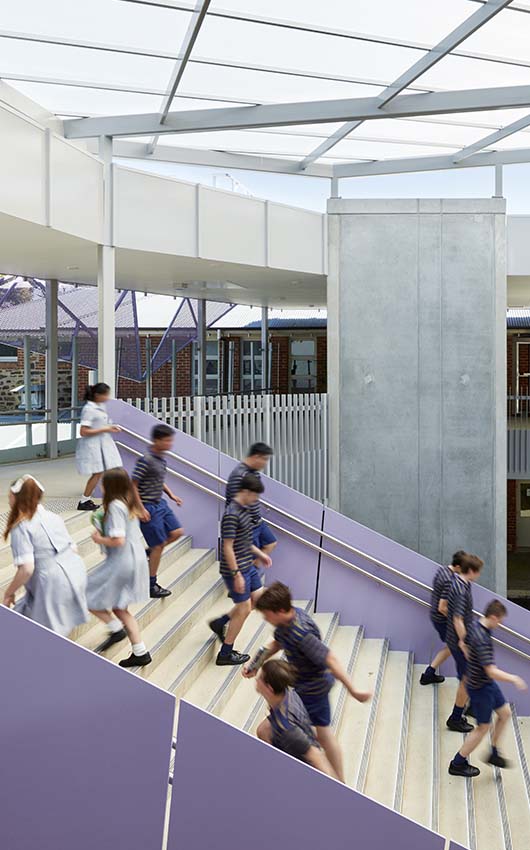

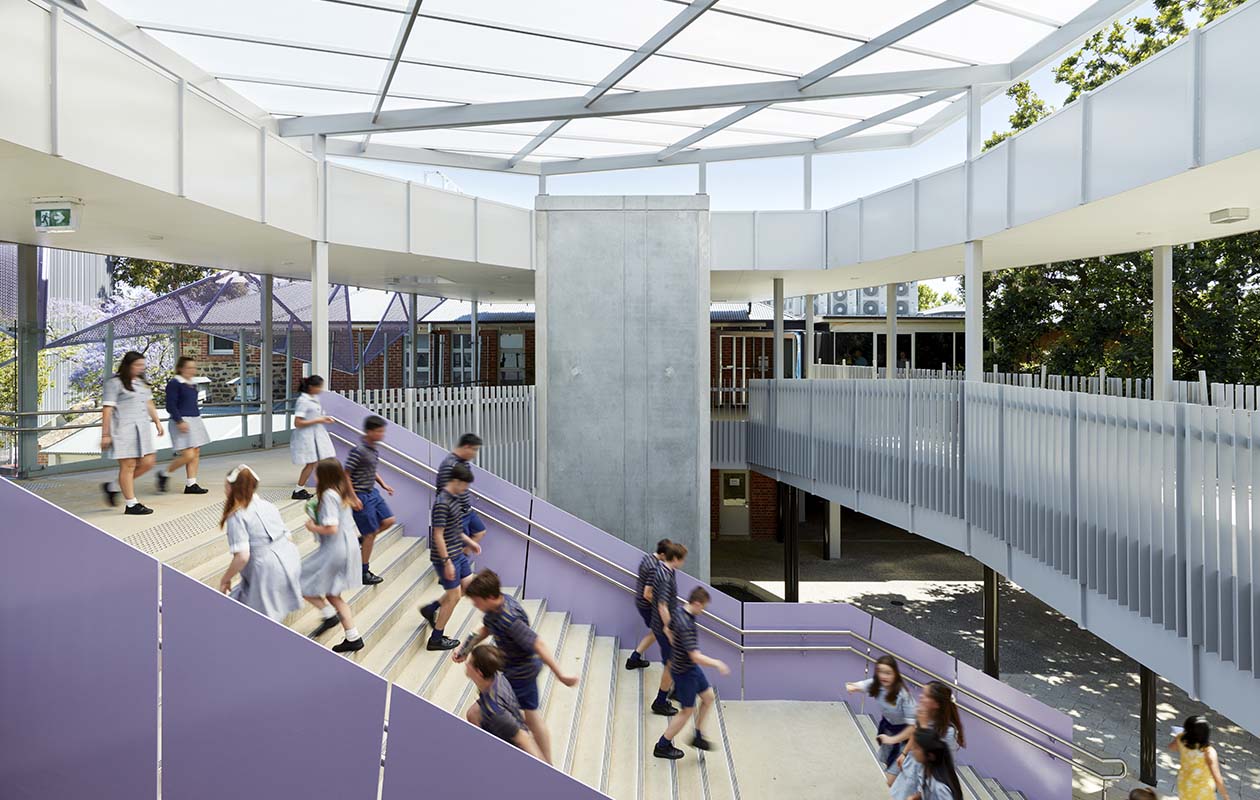

Staff and students access the bridge via a main thoroughfare on the original campus. Here, shelter is provided by an external roof system consisting of Rectangular Hollow Sections (RHS) supporting translucent roofing panels.

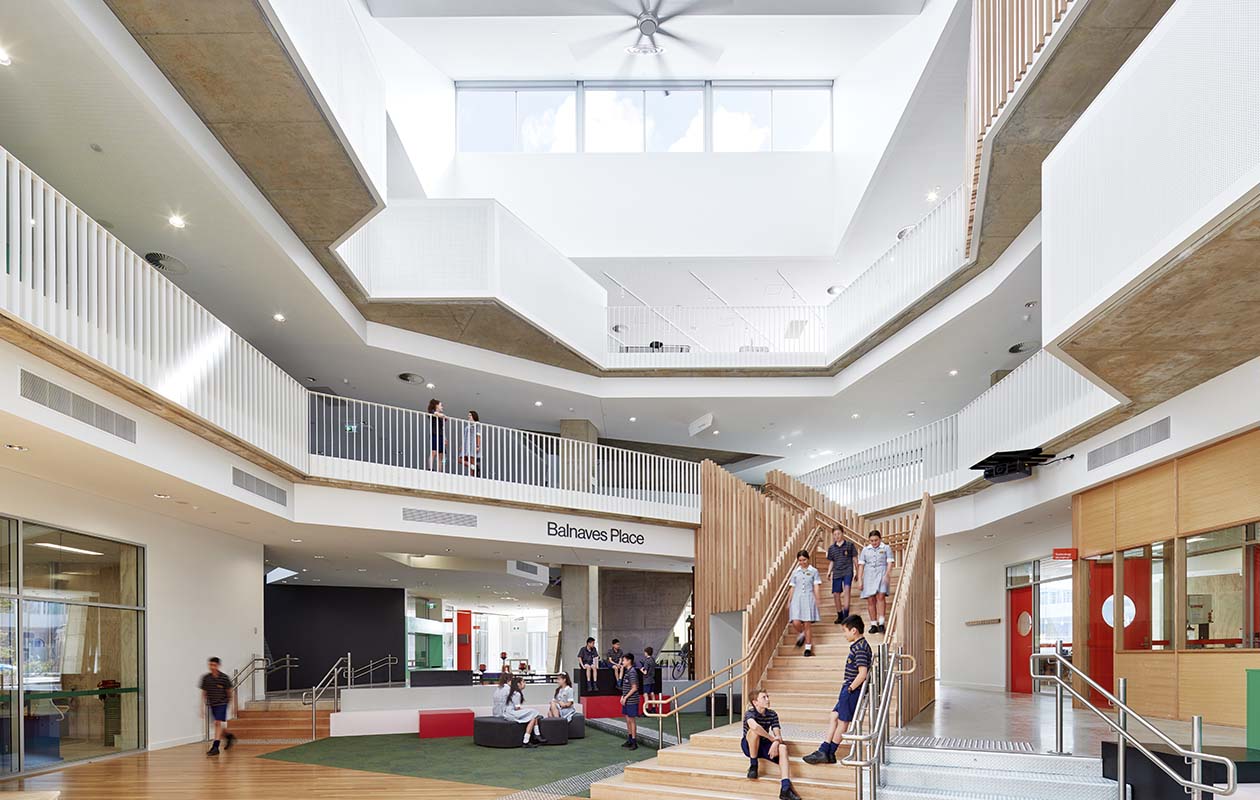

In the atrium, students and staff are able to work and connect in breakout spaces, view displayed artwork and attend theatre performances and orchestra rehearsals.
The atrium is also the key connection point between the three educational ‘neighbourhoods’ of technology, science and art, which each has a designated floor in the campus.
“All the design decisions made were focused through the lens of ‘building as teacher,’” says GGA’s Dimitty Andersen. Indeed, the building is a living educational space, with exposed services putting the inner workings of the building on show. “Hopefully there will be spin-off,” Andersen says, “to inform and inspire the next generation of builders, designers and innovators.”

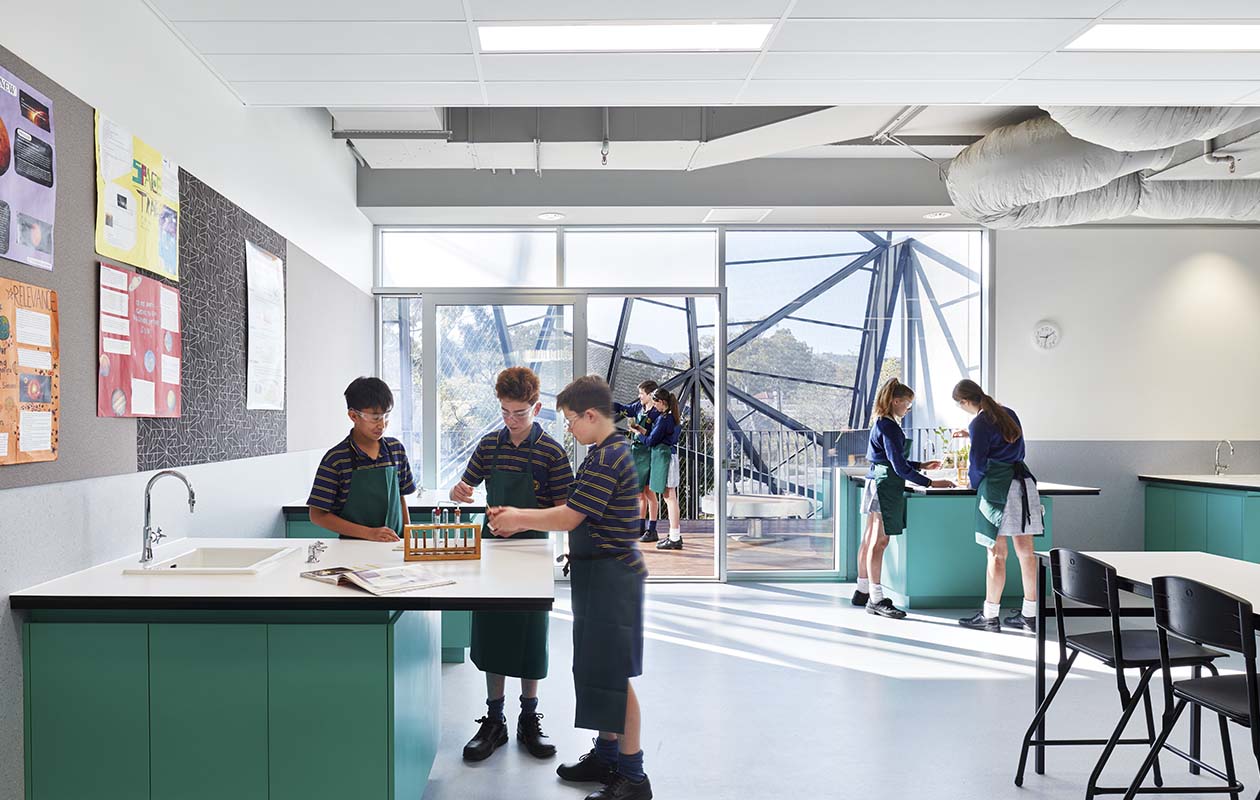

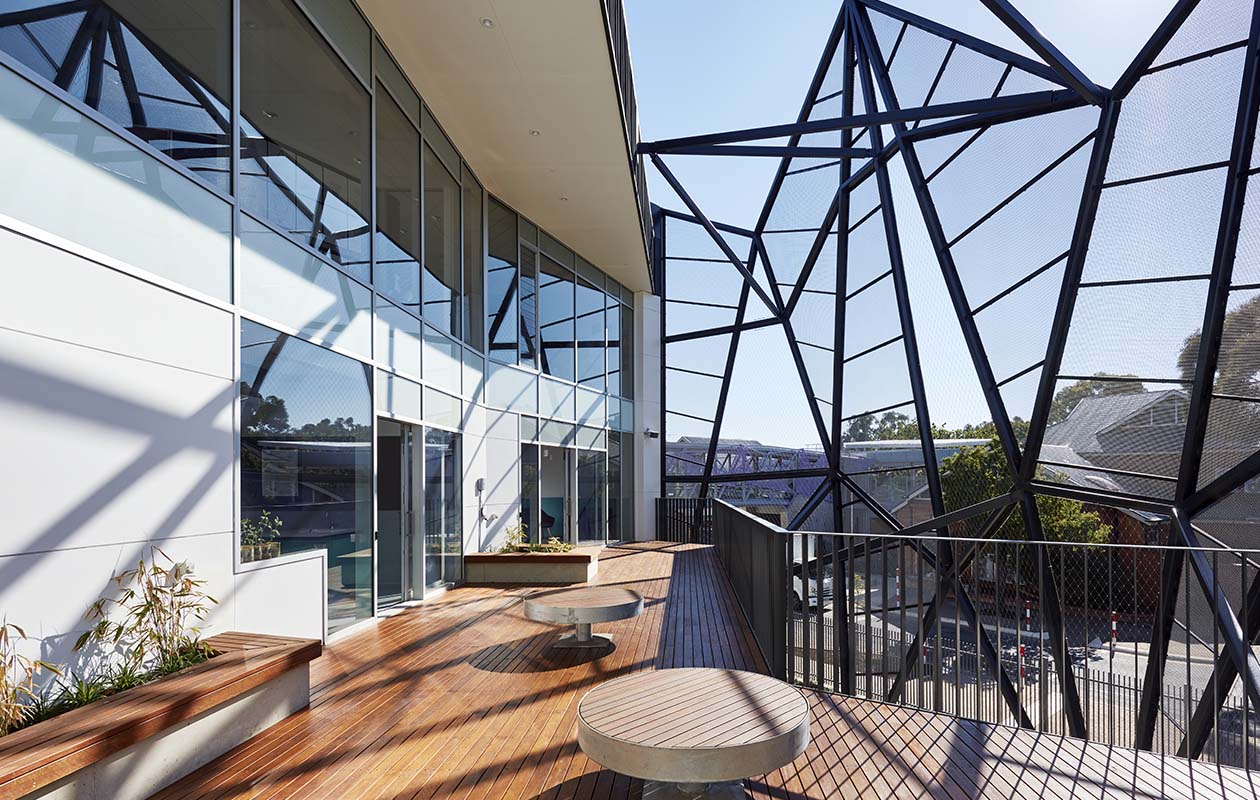

Encouraging staff and students to teach and learn outdoors, the transition from indoor to out is kept seamless and hyper-accessible, with multiple areas that open out from interior spaces, including a large biodeck on level one of the campus. Situated next to the science laboratories, the deck allows for lesson plans to be devised with outside interaction in mind, offering real-world applications for studies of the natural sciences.
Bordering the deck is an intricate “spider web” of steel beams onto which woven wire screening mesh from expanded and perforated metal from wire mesh fabricator, Locker Group, has been applied. This structure provides protection from the early morning sun, acts as a planting screen and provides three-dimensional dynamism to the overall building.
It is this dynamism that truly ‘makes’ the building, where materiality allowed the project team to lean into the site’s restrictions and turn them into features, creating a building that is not restricted but rather is empowered by its constraints.
The result is a campus that looks alive, using shape and texture to manipulate materials and light so they appear as if they are moving, creating what Andersen describes as a “building of energy”.
Since the project’s completion, it has been recognised with a number of awards from the Australian Institute of Architect’s South Australian Chapter, including the COLORBOND® Award for Steel Architecture, the Dr John Mayfield Award for Educational Architecture and a commendation for Interior Architecture.
Perhaps more importantly however, is how the building has been received by its key stakeholders: the students. To this, Andersen recounts a site inspection at the project’s completion, where she saw an art class depicting versions of the new campus in 2D and 3D artworks: “That was very emotional for me,” she said, because that very thing we hoped would occur, did. This was an appreciation of deeper learning right before you. That was fantastic and very gratifying.”
